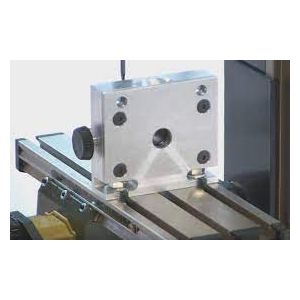

Dividing head for MICRO miller MF-70 and MICRO compound table KT-70

For machining circular work pieces, manufacturing off-set holes and milled out portions, milling key surfaces, four-sided, sixsided materials, etc.

Absolute accurate division due to nonius at the base body. With reversed chuck jaws: Capacity inside 1.5 to 32mm, outside 12 to 65mm.

Bore of 11mm (for processing longer spindles in a vertical position).

With fastening bores for horizontal and vertical mounting and suitable slot nuts and fastening screws for mounting to the MICRO miller MF-70 and the MICRO compound table KT-70.

PRODUCT SPECIFICATION

• Size: 72 x 64 x 38mm
• Supplied in a wooden box with sliding lid.
